Pg9 Chassis Side Thread M12 Panel Connector 17 Pin Front Mount With 0.5m Single Wires

Product Categories
Dongguan Cableforce Electronics Co., Ltd
Contact Now

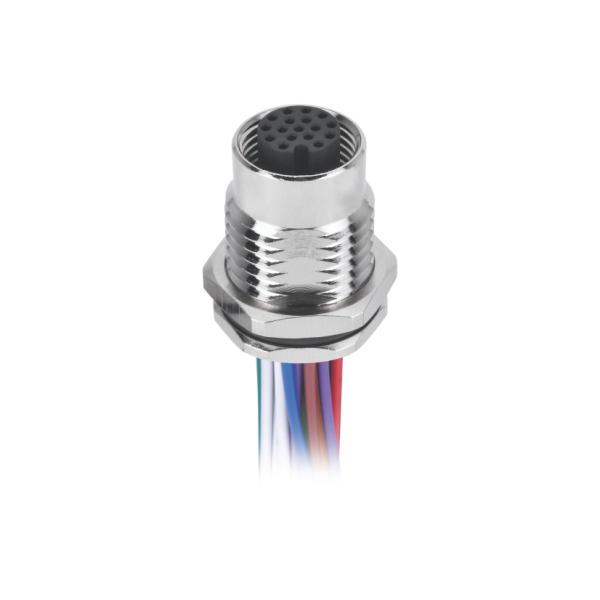

Pg9 Chassis Side Thread M12 Panel Connector 17 Pin Front Mount With 0.5m Single Wires

  • 1
  • 2

Brand Name : CABLEFORCE

Model Number : MC17P2LSABP9-26W05

Certification : CUL Certified, CE/ EMC, IP67, IP69K

Place of Origin : Guangdong, China

MOQ : 100

Price : Negotiated

Payment Terms : T/T

Supply Ability : 60000 pcs/month

Delivery Time : 2~3 weeks

Packaging Details : Our standard packing: Individual part with transparent PE bag with label, OEM packing available.

Reference Standard : IEC 61076-2-101

Contacts Poles : 17 Pin

Wire Gauge (size) : 0.14mm²（26AWG）

Contacts Termination : Soldering

Contacts Material : Phosphor bronze, machined solid pin

Panel Cut Size : PG9, M16x1.5

Cable Flamability : VW-1

Warranty : 3-years quality guarantee period

Cable Features : UV-Resistant, Crosion resistant, Hydrolysis resistant, Oil resistance

Temperature Rating : -40°C ~ + 80°C, -40°C ~ + 105°C

Waterproof Depth : IP67 1m depth 30 minutes, IP69K against high pressure

Insert : PA66+GF

Contacts Plating : 3μ" Gold plating thickness

Protection degree : IP67, IP69K

Contact Now

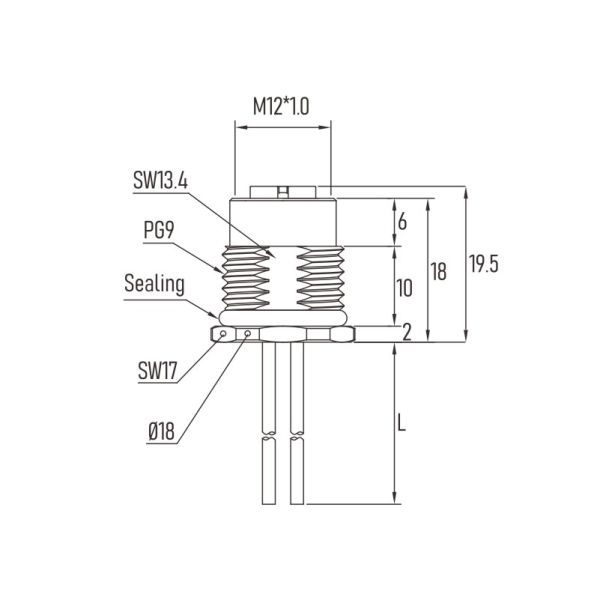

PG9 Chassis Side Thread M12 17 Pin Panel Connector Front Mount With 0.5M Single Wires
Connector Technical Data
Model Number
 MC17P2LSABP9-26W05
Tightening Torque 0.6Nm
Locking System M12 ×1.0 screw
Connectors No.
17 Pin
Rated Current
1.5A
Rated Voltage
 30V
Impulse Voltage
500V
O Ring FKM , Silicon, O-Ring
Insulation Resistance ≥100MΩ
Contact Resistence ≤5MΩ
Termination Soldering
Cable Length 1M or Customized length
Connector Flamability UL94 V0
Panel locking side Front side fastening the nut
Pollution Degree
 3
Protection Degree IP67, IP69K
Description of M12 17 Pin Female Panel Connector

The M12 metric size A-Coding connectors, based on IEC 61076-2-101 standard, it is the most commonly used connector in the factory automation. M12 A-Coding connectors mainly designed for sensor and actuator devices. CABLEFORCE M12 A-Coding connectors are developed and designed for harsh industrial and climatic environments, e.g. High temperature range endurance, Hydrolysis resistant, Oil resistant, Corrosion resistant, UV-Resistant, Abrasion resistant, Bending and Drag Chain applicable. M12 A-Coding is a specified single keyway design; differentiate itself from B, C, D, X, S, T, K, L, M, Y-Coding.

● 2 pin, 3 pin, 4 pin, 5 pin, 7 pins, 8 pin, 12 pin, 17 pins
● PCB contacts, Solder type with (custom wire specification)
● Stainless steel and Plastic connector available
● Voltage rating: 600V, 250V, 60V, 30V
● Current rating: 16A, 4A, 3A, 1.5A
● IP67, IP69K protection degree
● Anti-vibration

Feature Of M12 Circular Connector

● Tailor made material to meet various application conditions
● Gold-plated solid brass or phosphor bronze contacts ≥ 600 times mating life
● Durable cable material suitable for Drag Chain moving and bending demands
● Good stripping and terminating properties
● Sturdy metal coupling screws with anti-vibration design, 48 hours Salt Spray Test
● UV Resistant, Hydrolysis Resistant,Oil resistant
● Temperature Range: Dynamic -25 ~ 80℃, Static: -40 ~ 80℃.
● Protection degree: IP67 in locked status, IP68 base on customer specific requirements.
● RoHS, REACH compliant.

FAQ

● Are M12 connectors waterproof?
The M12 connecting interface features waterproof protection (IP65/IP68/IP69K), cross-manufacturer compatibility (IEC 61076-2), and multipurpose applications (Signal, Power, Network). The standard codings of M12 are A-, B-, D-, K-, L-, X-, S-, and Y coding.

● Are all M12 connectors interchangeable?
M12 connectors are one of the most popular industrial connector solutions on the market. They are part of an IEC specification that ensures all A-Code connectors are interchangeable with each other.
● Are you provide OEM , ODM Service?
Globally supplying customers with excellent quality cable and connectors at affordable price, also in addition to standard industrial circular connectors,Cableforce prides itself in supplying customized development,design and manufacturing of cable and connections to meet customer's specific requirements, as well as customers branding, labeling service.

Pg9 Chassis Side Thread M12 Panel Connector 17 Pin Front Mount With 0.5m Single WiresPg9 Chassis Side Thread M12 Panel Connector 17 Pin Front Mount With 0.5m Single Wires
