16DC Power Male Panel M12 T Connector Front Side Fastening With PCB Contacts PG9

Product Categories
Dongguan Cableforce Electronics Co., Ltd
Contact Now

16DC Power Male Panel M12 T Connector Front Side Fastening With PCB Contacts PG9

Brand Name : CABLEFORCE

Model Number : MC05P1LPKBP9

Certification : UL Certified, CUL Certified, CE/ EMC, IP67, IP69K

Place of Origin : Guangdong, China

MOQ : 100

Price : Negotiated

Payment Terms : T/T

Supply Ability : 60000 pcs/month

Delivery Time : 2~3 weeks

Packaging Details : Our standard packing: Individual part with transparent PE bag with label, OEM packing available.

Product name : M12 K-Code male panel connector

Reference Standard : IEC 61076-2-111

Contact Plating : Au (Gold)

Keywords : panel connector

Connector Type : Sensor Connector

Termination : PCB Dip Soldering

Pollution Degree : IP67,IP68

Rated Voltage : 690V AV

Rated Current : 16A

Locking System : M12*1.0 Screw

Gender : Male

Coding : K-Code

Contact Now

M12 T Connector Male Panel Connector 16DC Power Front Side Fastening With PCB Contacts PG9

Connector Technical Data
Contacts No. MC05P1LPKBP9
Rated current 16A
Rated voltage 690V AC
Impulse voltage 5000V
Locking system M12*1.0 Screw
Termination PCB Dip Soldering
Rated temperature Flexible: -25℃ ~ +80℃;Static:-40℃ ~ +105℃
Insulation resistance ≥100MΩ
Contact resistance ≤8mΩ
Contact Male:Brass
Contacts plating Au(Gold)
O Ring FKM,Silicon
Pollution Degree
3
Description

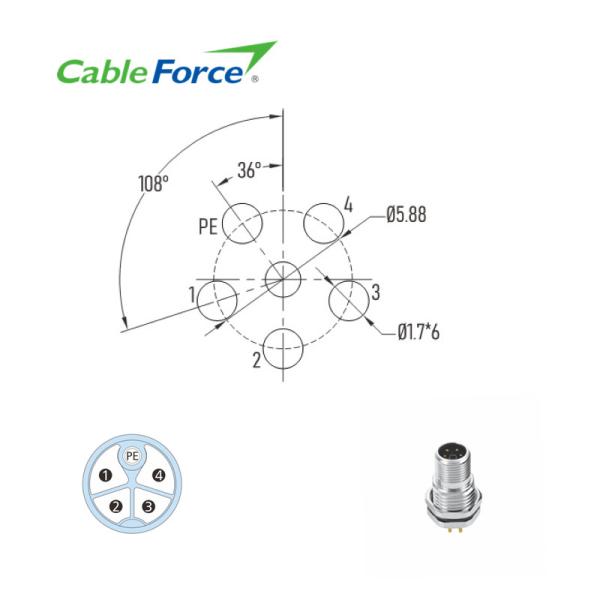

The M12 T Connector Male Panel Connector ,front side fastening ,rear side fastening are available,and the poles is 4+PE (5Pin).The K-Coding panel mount connector are designed for the DC servo motor mostly.

Cableforce M12 Products Catalogue

● M12 Circular molded cable
● M12 Circular panel connectors
● M12 Field wireable connectors
● M12 T-Adapter & Y-Splitters

FAQ

● What type of Cable Jacket are generally used to connector?

PUR Cable,PVC Cable,Silicon Cable,Telfelon Cable,TPE Cable,LSZH Cable,XLPE Cable PE,Rubber Cable etc.


● How many type of Connector Contacts Versons?
Crimping type,Solder type,Screwing type,PCB contacts,IDC.
